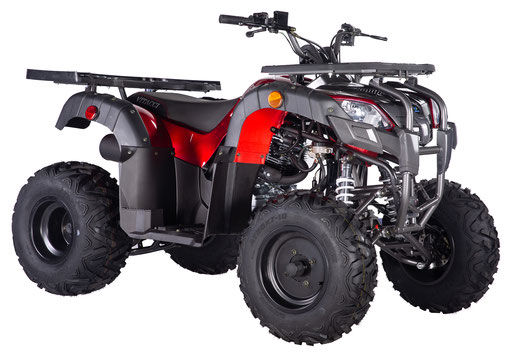

ATV PENTORA UT 250cc

NO.

Sort

specification

unit

1.

Vehicle parameter

Length×width×Height

1660*1030*1080

2.

Wheelbase

1150±20mm

3.

Front wheel track

850 mm

4.

Rear wheel track

820 mm

5.

Maximum ground clearance

140±15mm mm

6.

Seat height

780 ±15mm mm

7.

Chassis height

260 mm

8.

Handle height

1080 mm

9.

Packing size

1620*1020*860mm 42/40H

10.

Front mechanical suspension stroke

60 mm

11.

Rear mechanical suspension stroke

80 mm

12.

Minimum turning diameter

3400±500mm

13.

Steering angle

<45° （in fact: 39°）

14.

Side slip

<5m/km

15.

Load capacity

100kg

16.

Net weight

159kg

17.

Packing GW

187kg

18.

Brake type (front/rear)

F/R disco brake

19.

Brake operation mode (front/rear)

F/ handbrake R/foot brake

20.

Rim type (front/rear)

10寸/9寸

21.

Tire size (front/rear)

F/AT20*7-10 R/AT20*10-9/off-road tire

22.

Tire pressure (front/rear)

9P.S. I

23.

Transmission mode

Chain drive

24.

Engine parameters



model

LC166FMM

25.

Type

Single cylinder、4 strokes、air cooling

26.

Factory

Loncin

27.

Bore diameter × stroke

65.5×66.2mm

28.

Cylinder working volume

223mL

29.

Compression ratio

   9.0:1

30.

Rated power and corresponding speed

 /

31.

Maximum power and corresponding speed

12（1±5%）kW /7500（1±5%）rpm

32.

Maximum torque and corresponding speed

17（1±5%）N · m /6000（1±5%）rpm

33.

Minimum idling speed

  1500±150 r /min

34.

minimum specific fuel consumption

≤354 g / kw.h

35.

Fuel brand

≥RQ90

36.

Lubrication mode

  Pressure and splash hybrid lubrication

37.

Lubrication mode

  15W/40-SE(Summer)10W/30-SF(Winter)

38.

Clutch mode

  Wet multi-piece

39.

Starting mode

electric

40.

Ignition mode

CDI

41.

Components

Carburetor mode

Plunge PZ30

42.

Spark plug type

D8RTC

43.

Battery

12V/7HA

44.

Front light type

12V18-18W

45.









Technical parameters

Max speed

大于80km/h

46.

starting performance

15S

47.

brake performance

≤5.9m/30m/km/h

Front wheel ratio

≥60%

Rear wheel ratio

≤20%

Front wheel (force difference)

≥55%

Rear wheel (force difference)

≤24%

48.

climbing ability

21°°

49.

parking performance

≥18%

50.

emission index



CO(%)

≤2

HC(PPm)

≤250

51.

Max noise db(A)

≤82 dB(A)

52.

starting acceleration capability（S）

≤15

53.

passing acceleration capability（S）

≤10

54.

Component parameter

Oil tank capacity

9L

55.

F/R suspension type

Hydraulic damping shock absorber

56.

Exhaust muffler type

Barrel impedance composite muffler

57.

F/R suspension length

L=  340 m m / L=390 m m
