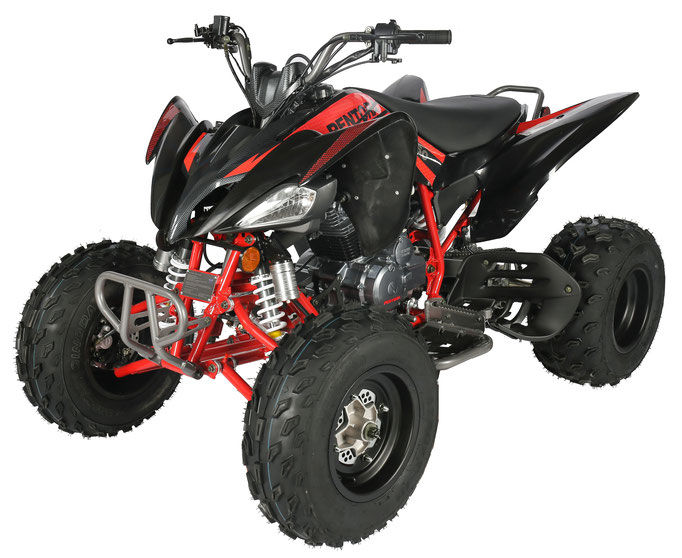

ATV PENTORA 250cc
PRODUCT SPECS
Y65-Y250
NO.
ITEM
TECHNICAL SPECIFICATION
1.
SPECIFICATION
PARTS SPECIFICATION
L×W×H
1625*1060*1065
2.
WHEELBASE
1090±20mm
3.
FRONT WHEELBASE
820mm
4.
REAR WHEELBASE
830mm
5.
MINIMUM GROUND CLEARANCE
135±15mm
6.
SEAT HEIGHT
790±15 mm
7.
RIDE HEIGHT
225mm
8.
HANDLE HEIGHT
1000mm
9.
PACKING SIZE
1460*880*860mm 62pcs/40HQ
10.
MINIMUM TURNING CIRCLE DIAMETER
5900±500mm
11.
TURNING ANGLE
<45°
12.
RATED LOAD
100kg
13.
NET WEIGHT
149kg
14.
GROSS WEIGHT (WITH PACKING)
177kg
15.
F&R BRAKE
F&R HYDRAULIC DISC
16.
F&R BRAKE OPERATION TYPE
FRONT HAND BRAKE, REAR FOOT BRAKE
17.
F&R RIM
10*5.5AT/9*8.0AT
18.
F&R TYRE
AT20*7.0-10/AT19*10-9
19.
TRANSMISSION
CHAIN
20.
TECHNICAL SPECIFICATION
FUEL TANK
9L`
21.
22.
BATTRY
12V/7HA `
23.
MAXIMUM SPEED
70km/h
24.
SPECIFICATION
STARTING PERFORMANCE
15S
25.
CLIMBING PERFORMANCE
21°
26.
PARKING PERFORMANCE
≥18°
27.
EMISSION INDEX
CO (%)
≤3.8
HC(PPm)
≤800
28.
db.(A)
≤82 dB(A)
29.
ENGINE SPECIFICATION
MODEL
LC166FMM
30.
TYPE
SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE
31.
BRAND
LONCIN
32.
BRORE×STROKE
65.5x66.2mm
33.
capacity
223mL
34.
COMPRESSION RATIO
9.0:1
35.
MAX.POWER
12（1±5%）kW /7500（1±5%）rpm
36.
MAX.TORQUE
17（1±5%）N · m /6000（1±5%）rpm
37.
Min no load speed
1500（1±10%） r /min
38.
min fuel consumption rate
354g / kw.h
39.
Fuel no.
≥RQ90
40.
CLUTCH METHOD
Manual
41.
Start
Electrical start
42.
cdi
C.D.I
43.
PARTS SPECIFICATION
carb
PZ30
44.
Spark plug
D8TC
45.
Front light
12V18-18W
46.
TECHNICAL SPECIFICATION
Max speed
70km/h
47.
Start time
15S
48.
break
前轮力和
≥60%
前轮力差
≥55%
后轮力和
≤20%
后轮力差
≤24%
49.
CLIMBING PERFORMANCE
21°°
50.
PARKING PERFORMANCE
≥18%
51.
EMISSION INDEX
CO (%)
≤3.8
HC(PPm)
≤800
52.
db(A)
≤82 dB(A)
53.
Starting acceleration（S）
≤8
54.
Speed acceleration（S）
≤8
55.
Parts spec
Tank capacity
9L
56.
Fr. & re suspension
Oil dumper
57.
Fr. &re suspension
L=350 m m /L=390 m m
